Broadcast Protocols

• Broadcast Protocols
  • Reliable Broadcasts
    • FIFO Broadcast
    • Causal Broadcast
    • Total Order Broadcast
      • Algorithms
  • Replication using Total Order Broadcast

Reliable Broadcasts

Broadcast	Explanation
FIFO	Messages sent by the same node must be delivered in the order that they were sent. Messages by other nodes do not matter.
Causal	if b(m1) => b(m2), m1 must be delivered before m2 (b from any node)
Total Order	if m1 is delivered before m2 on one node => all nodes (including self) must have received m1 before m2
FIFO Total Order	Combination of FIFO and Total Order Broadcast

FIFO Broadcast

• A sends M1 and M3
• B sends M2
• That means valid orders are (m1,m2,m3), (m2,m1,m3), (m1,m3,m2)
• m3 and m1 are not allowed to change place

Causal Broadcast

• A sends M1 first
• A and B send M2 (A) and M3 (B) concurrently
• Valid orders are (m1,m2,m3) & (m1,m3,m2)
  • m2 and m3 are allowed to change place, as concurrent
• Essentially a node’s broadcast is always sorted

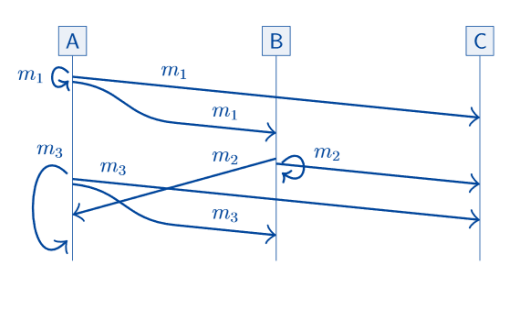

Total Order Broadcast

• Only one order in this case
• But as you can see, M3 must be adapted as also applies to self

Algorithms

Not fault tolerant!

Replication using Total Order Broadcast

Assume that every node delivers the same message in the same order. We can then perform State Machine Replication.
